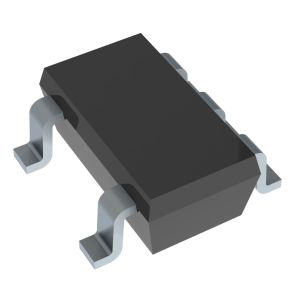

LMC7111BIM5X/NOPB Audio Power Amplifier IC Op Amps TINY 2.7V RRIO UPWR CMOS AMP
FEATURES
Very Wide Common Mode Input Range
Specified at 2.7V, 5V, and 10V
Typical Supply Current 25 μA at 5V
50 kHz Gain-Bandwidth at 5V
Similar to Popular LMC6462
Output to Within 20 mV of Supply Rail at 100k Load
Good Capacitive Load Drive
APPLICATIONS
Mobile Communications
Portable Computing
Current Sensing for Battery Chargers
Voltage Reference Buffering
Sensor Interface
Stable Bias for GaAs RF Amps
DESCRIPTION
The LMC7111 is a micropower CMOS operational amplifier available in the space saving SOT-23 package. This makes the LMC7111 ideal for space and weight critical designs. The wide common-mode input range makes it easy to design battery monitoring circuits which sense signals above the V+ supply. The main benefits of the Tiny package are most apparent in small portable electronic devices, such as mobile phones, pagers, and portable computers. The tiny amplifiers can be placed on a board where they are needed, simplifying board layout.
